太陽能光伏組件自動裝框機：光伏制造的重要裝備

一、設備定位與核心功能

Equipment Positioning and Core Functions

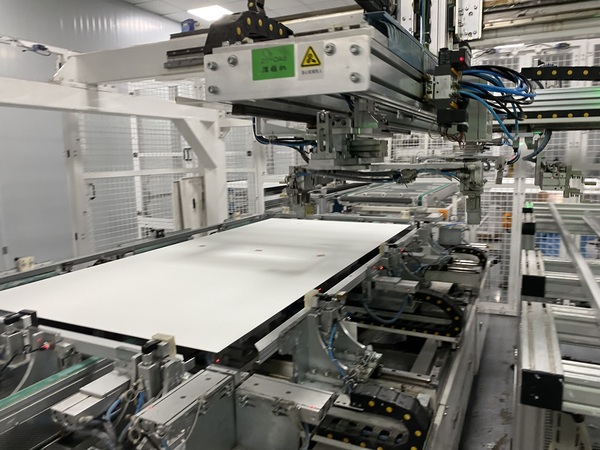

太陽能光伏組件自動裝框機是光伏組件制造流程中的關鍵設備，主要用于將層壓固化后的電池組件與鋁合金邊框進行高精度組裝。其核心功能包括：

The solar photovoltaic module automatic framing machine is a key equipment in the photovoltaic module manufacturing process, mainly used for high-precision assembly of the laminated and solidified battery module with the aluminum alloy frame. Its core functions include:

邊框固定：通過角碼鉚接或螺絲連接技術，將鋁合金邊框與組件牢固結合，提升組件抗機械載荷能力。

Frame fixing: Through corner code riveting or screw connection technology, the aluminum alloy frame is firmly combined with the module to improve the module's resistance to mechanical loads.

密封增強：在邊框與組件縫隙中填充硅酮樹脂，實現防水、防塵及抗老化密封，延長組件使用壽命。

Sealing enhancement: Filling silicone resin in the gap between the frame and the module to achieve waterproof, dustproof and anti-aging sealing, and extend the service life of the module.

精度保障：采用伺服電機驅動、負壓吸附矯平及滾珠絲杠壓緊系統，確保組框精度達±0.5mm，對角線誤差≤±1mm，滿足高效組件的嚴苛要求。

Precision guarantee: Adopt servo motor drive, negative pressure adsorption leveling and ball screw pressing system to ensure that the frame assembly precision reaches ±0.5mm, and the diagonal error is ≤±1mm, meeting the strict requirements of high-efficiency modules.

二、技術特性與工藝優勢

Technical Characteristics and Process Advantages

模塊化設計

Modular design

設備支持2100×1200mm 至 800×800mm 組件尺寸，兼容 60 片、72 片及雙玻、半片等版型，通過更換組件代碼即可快速切換規格，柔性化生產能力突出。

The equipment supports component sizes from 2100×1200mm to 800×800mm, compatible with 60-cell, 72-cell, double-glass, half-cell and other types. The specifications can be quickly switched by changing the component code, with outstanding flexible production capacity.

典型設備尺寸為3600×2200×930mm，重量約 3400Kg，結構緊湊且易于集成至自動化生產線。

The typical equipment size is 3600×2200×930mm, weight is about 3400Kg, with a compact structure and easy integration into automated production lines.

高精度裝配技術

High-precision assembly technology

定位系統：采用8 點推進定位至設備中心，結合負壓吸附矯平技術，消除組件彎曲度（≤4mm）對組框精度的影響。

Positioning system: Adopt 8-point propulsion positioning to the center of the equipment, combined with negative pressure adsorption leveling technology to eliminate the influence of component curvature (≤4mm) on the frame assembly precision.

壓接機構：長、短邊推板通過滾珠絲杠傳動壓緊，同步性誤差≤0.1mm，確保邊框與組件間隙均勻。

Crimping mechanism: The long and short side push plates are pressed by ball screw drive, with a synchronization error ≤0.1mm, ensuring uniform gap between the frame and the module.

扭力保護：伺服電機內置極限扭力監測，當組框力超限時自動報警停機，防止電池板損傷。

Torque protection: The servo motor has built-in limit torque monitoring, which automatically alarms and shuts down when the frame assembly force exceeds the limit to prevent damage to the battery panel.

智能化控制與兼容性

Intelligent control and compatibility

PLC 可編程控制器支持 10 組程序存儲，參數設置界面化，換型時間縮短至 5 分鐘以內。

The PLC programmable controller supports 10 groups of program storage, with parameter setting interface, and the model change time is shortened to less than 5 minutes.

兼容單軸、雙軸伺服傳動系統，可擴展視覺檢測模塊，實現邊框缺陷識別與自動補膠功能。

Compatible with single-axis and dual-axis servo drive systems, and can be expanded with visual inspection modules to realize frame defect identification and automatic glue replenishment functions.

二、典型應用場景與性能指標

Typical Application Scenarios and Performance Indicators

工藝流程

Process flow

組件傳輸→定位矯平→邊框放置→長 / 短邊同步壓接→負壓解除→輸出成品。

Component transmission → positioning and leveling → frame placement → long/short side synchronous crimping → negative pressure release → output finished products.

整線節拍≤32 秒 / 循環，日產能可達 2700 塊組件（按 8 小時工作制計算）。

The whole line beat is ≤32 seconds/cycle, and the daily output can reach 2700 modules (calculated according to 8-hour working system).

關鍵參數

Key parameters

組框精度：對邊尺寸差±0.5mm，對角線差 ±1mm，四角角度偏差≤±0.5°。

Frame assembly precision: opposite side size difference ±0.5mm, diagonal difference ±1mm, four-corner angle deviation ≤±0.5°.

溢膠控制：玻璃面無溢膠，背板面溢膠寬度差≤2mm，無卷膠、氣泡現象。

Glue overflow control: No glue overflow on the glass surface, the glue overflow width difference on the back surface is ≤2mm, and there is no glue rolling or air bubbles.

設備穩定性：故障率≤1%，由裝框機導致的不合格品率≤1/10000。

Equipment stability: The failure rate is ≤1%, and the defective rate caused by the framing machine is ≤1/10000.

材料適配性

Material adaptability

支持30×30mm 至 50×35mm 邊框型材，型材直線度要求＜1mm，玻璃彎曲度＜4mm。

Supports 30×30mm to 50×35mm frame profiles, with profile straightness requirement <1mm and glass curvature <4mm.

硅膠使用量占鋁合金凹槽體積的50%，確保密封效果與材料成本平衡。

The amount of silica gel used accounts for 50% of the volume of the aluminum alloy groove to ensure a balance between sealing effect and material cost.

三、選型建議

Selection Suggestions

兼容性：優先選擇支持多版型、多尺寸組件的設備，降低未來產線升級成本。

Compatibility: Priority should be given to equipment that supports multi-version and multi-size components to reduce future production line upgrade costs.

精度與穩定性：關注組框精度、故障率及溢膠控制能力，直接影響組件成品率與可靠性。

Precision and stability: Pay attention to frame assembly precision, failure rate and glue overflow control ability, which directly affect the component yield and reliability.

售后服務：考察供應商的響應速度、備件供應能力及技術培訓支持。

After-sales service: Investigate the supplier's response speed, spare parts supply capacity and technical training support.

四、行業趨勢與發展方向

Industry Trends and Development Directions

集成化升級：裝框機與打膠、測試環節深度融合，形成“裝框 - 打膠 - EL 測試” 一體化產線，減少人工干預。

Integration upgrade: The framing machine is deeply integrated with the gluing and testing links to form an integrated production line of "framing-gluing-EL testing" to reduce manual intervention.

智能化拓展：引入AI 視覺檢測與自適應調節技術，實現邊框缺陷自動識別、膠量動態控制及組框壓力閉環反饋。

Intelligent expansion: Introduce AI visual inspection and adaptive adjustment technology to realize automatic identification of frame defects, dynamic control of glue amount and closed-loop feedback of frame assembly pressure.

綠色制造：優化硅膠使用量與設備能耗，推動光伏組件生產全生命周期碳足跡降低。

Green manufacturing: Optimize the amount of silica gel used and equipment energy consumption, and promote the reduction of the carbon footprint of the entire life cycle of photovoltaic module production.
