光伏組件機器人排版機的特點

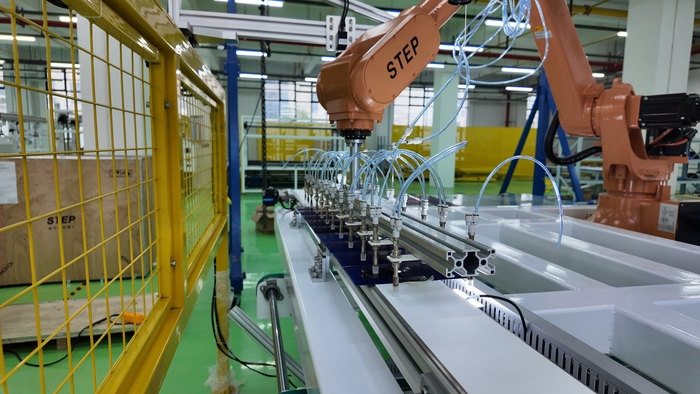

光伏排版機器人作為光伏組件生產中的核心設備，具備高精度、高速度、高穩定性、高負載能力、智能視覺系統、靈活兼容性及操作便捷性等顯著特點，具體分析如下：

As the core equipment in the production of photovoltaic modules, photovoltaic layout robots have significant characteristics such as high precision, high speed, high stability, high load capacity, intelligent vision system, flexible compatibility, and easy operation. The specific analysis is as follows:

1. 高精度定位，保障組件質量

High-precision positioning to ensure component quality

重復定位精度：主流光伏排版機器人重復定位精度可達±0.06mm 至 ±0.2mm，如中步擎天設備為 ±0.2mm。這一精度遠超人工操作，確保電池片在玻璃基板上的排列誤差極小，避免因錯位導致的組件功率損失或破裂隱裂。

Repeat positioning accuracy: The repeat positioning accuracy of mainstream photovoltaic layout robots can reach ±0.06mm to ±0.2mm, such as the Zhongbu Qingtian equipment which is ±0.2mm. This precision is far superior to manual operation, ensuring minimal alignment errors of battery cells on the glass substrate, and avoiding component power loss or cracking due to misalignment.

視覺系統輔助：通過工業相機或視覺軟件，機器人可實時識別電池片位置、形狀及方向，自動校正偏差。

Visual system assistance: Through industrial cameras or vision software, the robot can real-time identify the position, shape and direction of the battery cells, and automatically correct deviations.

2. 高速度運行，提升生產效率

High-speed operation to improve production efficiency

節拍優化：光伏排版機器人單循環節拍可縮短至6 秒以內，如中步擎天設備節拍為 5.5 秒 / 串，最高產能達 200 件 / 小時。相比之下，傳統人工排版效率低且易疲勞，機器人可實現 24 小時連續作業，顯著縮短產線切換時間（部分設備支持 30 分鐘內切換版型）。

Beat optimization: The single-cycle beat of photovoltaic layout robots can be shortened to less than 6 seconds. For example, the beat of Zhongbu Qingtian equipment is 5.5 seconds per string, with a maximum production capacity of 200 pieces per hour. In contrast, traditional manual layout is inefficient and prone to fatigue. Robots can achieve 24-hour continuous operation, significantly shortening the production line switching time (some equipment supports 版型 switching within 30 minutes).

動態軌跡優化：通過自研算法（如配天的“軌跡精度自學習”“抖動抑制” 算法），機器人在高速運動中仍能保持軌跡平滑，減少機械振動對精度的干擾。

Dynamic trajectory optimization: Through self-developed algorithms (such as Peitian's "trajectory accuracy self-learning" and "jitter suppression" algorithms), the robot can maintain a smooth trajectory during high-speed movement, reducing the interference of mechanical vibration on precision.

3. 高穩定性與可靠性，適應嚴苛環境

High stability and reliability to adapt to harsh environments

結構優化：采用高剛性機械臂設計，如中步擎天光伏組件機器人排版機通過優化機械結構，將臂展從2013mm 擴展至 2110mm，同時提升負載能力至 12kg，滿足大尺寸電池串排版需求。

Structural optimization: High-rigidity robotic arm design is adopted. For example, Zhongbu Qingtian photovoltaic module robot layout machine has expanded the arm span from 2013mm to 2110mm by optimizing the mechanical structure, and at the same time increased the load capacity to 12kg, meeting the layout requirements of large-size battery strings.

環境適應性：光伏生產車間可能存在粉塵、高溫等復雜環境，機器人需具備防塵、耐高溫特性。部分設備通過模塊化設計，便于快速維護和更換部件，減少停機時間。

Environmental adaptability: Photovoltaic production workshops may have complex environments such as dust and high temperature, so robots need to have dust-proof and high-temperature resistant characteristics. Some equipment adopts modular design, which is convenient for quick maintenance and replacement of parts, reducing downtime.

4. 高負載能力，兼容多樣化需求

High load capacity, compatible with diversified needs

負載范圍：主流機器人負載能力在10kg 至 12kg 之間，這一范圍可覆蓋單晶、多晶、異質結（HJT）等多種類型電池片的排版需求。

Load range: The load capacity of mainstream robots is between 10kg and 12kg, which can cover the layout needs of various types of battery cells such as monocrystalline, polycrystalline, and heterojunction (HJT).

尺寸兼容性：設備支持156mm 至 230mm 全尺寸電池片排版，并可靈活調整排版規格（如 6 串 ×9、6 串 ×12 等），適應不同客戶需求。

Size compatibility: The equipment supports the layout of full-size battery cells from 156mm to 230mm, and can flexibly adjust the layout specifications (such as 6 strings × 9, 6 strings × 12, etc.) to meet different customer needs.

5. 智能視覺系統，實現“眼明手疾”

Intelligent vision system to achieve "sharp eyes and quick hands"

一站式解決方案：傳統“機器人 + 視覺” 集成方案存在調試復雜、成本高的問題，而中步擎天等企業通過自研控制系統，將視覺識別與機械控制深度融合，實現 “眼明手疾” 的一體化操作。

One-stop solution: The traditional "robot + vision" integration scheme has problems of complex debugging and high cost. However, enterprises such as Zhongbu Qingtian have deeply integrated visual recognition and mechanical control through self-developed control systems to realize the integrated operation of "sharp eyes and quick hands".

缺陷檢測功能：部分高端設備可集成電池片外觀檢測功能，在排版過程中自動識別裂紋、臟污等缺陷，避免不良品流入下一工序。

Defect detection function: Some high-end equipment can integrate the appearance detection function of battery cells, automatically identify defects such as cracks and dirt during the layout process, and prevent defective products from flowing into the next process.

6. 靈活兼容性與產線協同

Flexible compatibility and production line collaboration

多設備協同：光伏排版機器人可與串焊機、層壓機等設備無縫對接，形成自動化生產線。例如，一臺機器人可同時服務兩臺串焊機，實現生產速度倍增。

Multi-equipment collaboration: Photovoltaic layout robots can seamlessly connect with string welders, laminators and other equipment to form an automated production line. For example, one robot can serve two string welders at the same time, doubling the production speed.

產線快速切換：通過軟件設備可在30 分鐘內完成產線版型切換，支持小批量、多品種的柔性生產模式。

Rapid production line switching: The production line version can be switched within 30 minutes through software equipment, supporting small-batch and multi-variety flexible production modes.

7. 操作便捷性與維護成本低

Easy operation and low maintenance cost

一鍵操控：中步擎天等企業的設備支持MES 系統對接，操作人員可通過觸摸屏或上位機一鍵啟動排版流程，降低技術門檻。

One-key control: Equipment from enterprises such as Zhongbu Qingtian supports MES system docking, and operators can start the layout process with one key through the touch screen or upper computer, reducing the technical threshold.

模塊化設計：關鍵部件（如機械臂、視覺模塊）采用標準化設計，便于快速更換和維修，減少停機損失。

Modular design: Key components (such as robotic arms, vision modules) adopt standardized design, which is convenient for quick replacement and maintenance, and reduces downtime losses.
