光伏組件的誕生之旅：揭秘太陽能電池背后的工藝魔法

在當今這個追求綠色能源的時代，太陽能作為一種取之不盡、用之不竭的清潔能源，正逐漸走進我們的生活。而光伏組件，作為太陽能發電的核心部件，它的質量和性能直接關系到太陽能系統的效率和壽命。那么，一塊高性能的光伏組件是如何誕生的呢？今天，就讓我們一起走進光伏組件的制造工藝，揭開它背后的神秘面紗。

In this era of pursuing green energy, solar energy, as a clean and inexhaustible source of power, is gradually becoming a part of our lives. The quality and performance of photovoltaic modules, which are the core components of solar power generation, directly affect the efficiency and lifespan of solar energy systems. So, how are high-performance photovoltaic modules born? Today, let's take a journey into the manufacturing process of photovoltaic modules and uncover the secrets behind their creation.

一、組件結構：半片組件的智慧設計

Half-Cut Module Structure: The Intelligent Design

光伏組件的結構設計是其高效性能的基礎。目前，半片組件因其獨特的優勢而廣受歡迎。半片組件通過將電池片切半，使電池工作電流減半，從而顯著降低焊帶上的電學損失，提高組件的電流轉換矩陣（CTM）。這種設計不僅讓電池之間的空隙增大，還能讓更多的反射光照射到電池上，進一步提升發電效率。電池片電流越高，半片技術帶來的價值越大。

The structure of photovoltaic modules is the foundation of their high-performance. Currently, half-cut modules are widely popular due to their unique advantages. By cutting solar cells in half, the working current of the cells is reduced by half. This significantly lowers electrical losses on the ribbons and improves the module's Current Transformation Matrix (CTM). This design not only increases the gaps between cells but also allows more reflected light to reach the cells, further enhancing power generation efficiency. The higher the cell current, the greater the value brought by half-cut technology.

二、串焊：串聯起光明的起點

Stringing: The Beginning of Connecting Light

光伏組件的制造之旅從串焊開始。在這個環節中，工人或自動化設備會用焊帶將各個電池片的正反面焊接起來，組成串聯的電池串。這是組件制造的基礎步驟，也是確保電流順暢傳輸?shù)年P(guān)鍵。然而，這個過程并不簡單，需要嚴格控制虛焊、過焊、裂片和焊接拉力等工藝問題。任何一個環節出現問題，都可能影響整個組件的性能。

The journey of manufacturing photovoltaic modules begins with stringing. In this step, workers or automated equipment use ribbons to connect the front and back sides of each cell, forming a series of interconnected strings. This is the fundamental step in module manufacturing and is crucial for ensuring smooth current transmission. However, this process is not easy. It requires strict control over virtual welding, over-welding, cell cracking, and welding tensile strength. Any issue in any step can affect the performance of the entire module.

三、疊層：精心搭建的“光伏大廈”

Layering: The Carefully Constructed “Photovoltaic Building”

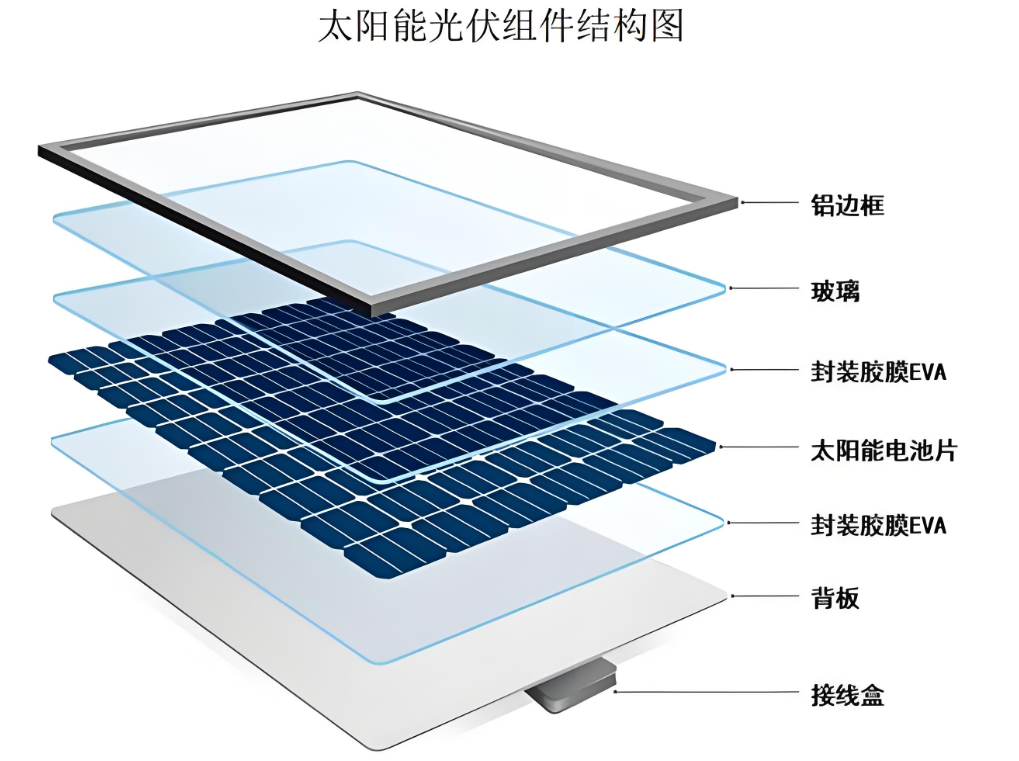

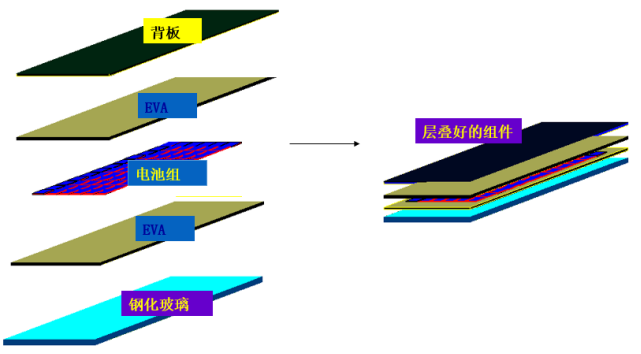

串焊完成后，接下來就是疊層。經過檢驗合格的電池串會被放置在玻璃、EVA、背板等材料之間，按照一定的層次敷設好，為層壓做好準備。這個過程就像是在搭建一座“光伏大廈”，需要確保電池串與玻璃等材料的相對位置準確無誤，并調整好電池之間的距離。敷設的層次從下到上依次是：玻璃、EVA、電池、EVA、玻璃纖維、背板。只有這樣，才能為后續的層壓工藝打下堅實的基礎。

After stringing, the next step is layering. The qualified cell strings are placed between glass, EVA, and backsheet materials, laid out in a specific order to prepare for lamination. This process is like constructing a “photovoltaic building,” requiring precise positioning of the strings relative to the glass and other materials, and adjusting the distance between cells. The laying order from bottom to top is: glass, EVA, cell, EVA, fiberglass, backsheet. Only in this way can a solid foundation be laid for the subsequent lamination process.

四、層壓：關鍵一步，賦予組件生命力

Lamination: The Key Step to Endowing Modules with Vitality

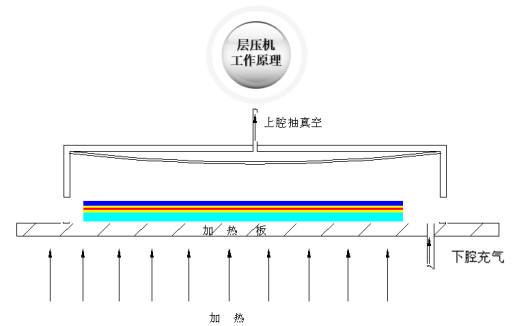

層壓是光伏組件制造的關鍵一步。將敷設好的電池放入層壓機內，通過抽真空將組件內的空氣抽出，然后加熱使EVA熔化，將電池、玻璃和背板粘接在一起。最后，冷卻取出組件。這個過程需要嚴格控制溫度和時間，通常使用普通EVA時，層壓循環時間約為10~15分鐘，固化溫度為135~145℃。在層壓過程中，需要特別注意氣泡、劃傷、凹坑、鼓包和裂片等問題，因?yàn)檫@些問題可能會影響組件的性能和壽命。此外，在層壓前，還需要進行嚴格的外觀檢查和EL檢測，以確保組件的安全性和性能。

Lamination is a critical step in the manufacturing of photovoltaic modules. The laid-out cells are placed into the laminator. The air inside the module is evacuated, and then the EVA is melted by heating to bond the cells, glass, and backsheet together. The module is then cooled and removed. This process requires strict control over temperature and time. When using ordinary EVA, the lamination cycle time is about 10-15 minutes, and the curing temperature is 135-145°C. During lamination, special attention must be paid to issues such as bubbles, scratches, dents, bulges, and cell cracking, as these can affect the performance and lifespan of the module. Additionally, strict visual inspection and EL testing must be conducted before lamination to ensure the safety and performance of the module.

五、裝框：為組件穿上“保護衣”

Framing: Dressing the Module in a “Protective Coat”

經過層壓后的組件，需要進行裝框。裝框的目的是保護組件鋼化玻璃的邊角及層壓后的組件，同時便于后期的工程安裝。在這個過程中，需要嚴格控制凹坑、擦傷、劃痕等問題，確保組件的外觀和性能不受影響。此外，還需要注意安裝孔是否缺失，以及背面是否有溢膠、氣泡和缺膠等情況。

After lamination, the module needs to be framed. The purpose of framing is to protect the edges and corners of the tempered glass and the laminated module, as well as to facilitate subsequent installation. In this process, it is necessary to strictly control issues such as dents, abrasions, and scratches to ensure the appearance and performance of the module. Additionally, attention must be paid to whether the installation holes are missing and whether there is overflow glue, bubbles, and lack of glue on the back.

六、安裝接線盒：電力的“傳輸站”

Junction Box Installation: The “Power Transmission Station”

裝框完成后，接下來就是安裝接線盒。接線盒的作用是連接并保護太陽能光伏組件，同時將光伏組件產生的電流傳導出來供用戶使用。在這個過程中，需要特別注意防止氣泡和溢膠等問題，以確保接線盒的密封性和可靠性。

After framing, the next step is to install the junction box. The junction box connects and protects the solar photovoltaic module while conducting the electricity generated by the module for user use. In this process, special attention must be paid to preventing bubbles and overflow glue to ensure the sealing and reliability of the junction box.

七、固化：為組件筑牢“防護墻”

Curing: Building a “Protective Wall” for the Module

安裝接線盒后，注入的密封膠需要進行固化。固化過程是通過控制時間、溫度和濕度，使密封膠充分固化，增強組件的密封效果，保護組件免受后續外界惡劣環境的影響。這一步驟對于組件的長期穩定性和可靠性至關重要。

After the junction box is installed, the injected sealant needs to be cured. The curing process involves controlling time, temperature, and humidity to fully cure the sealant, enhancing the sealing effect of the module and protecting it from subsequent harsh external environments. This step is crucial for the long-term stability and reliability of the module.

八、測試：確保組件的**性能

Testing: Ensuring the Module's Outstanding Performance

最后一個環節是測試。通過測量電性能參數，確定組件的分檔。主要測試包括絕緣耐壓測試、接地連續性測試和IV測試。絕緣耐壓測試用于檢測邊框與內部帶電體（電池片、焊帶等）之間在高壓作用下的安全性；接地連續性測試用于檢測邊框與地之間的電阻，以確定邊框接地性能是否良好；IV測試則用于測量電性能參數，確定組件的檔次。只有通過這些嚴格的測試，才能確保組件的**性能和安全性。

The final step is testing. By measuring the electrical performance parameters, the module's classification is determined. The main tests include insulation voltage withstand test, ground continuity test, and IV test. The insulation voltage withstand test detects the safety between the frame and internal live parts (cells, ribbons, etc.) under high voltage; the ground continuity test checks the resistance between the frame and the ground to determine if the frame grounding performance is good; the IV test measures the electrical performance parameters to determine the module's classification. Only through these strict tests can the outstanding performance and safety of the module be ensured.

九、中步擎天：為光伏組件制造賦能

Chintiyan(zbqt） Energy: Empowering Photovoltaic Module Manufacturing

隨著光伏產業的快速發展，光伏組件的制造工藝也在不斷創新和升級。中步擎天作為光伏組件設備研發智造的先鋒，始終致力于為光伏組件制造提供高效、智能的解決方案。我們的設備采用先進的技術，能夠精準控制每一個制造環節，從串焊到層壓，從裝框到固化，確保每一個步驟都達到最高標準。中步擎天不僅關注設備的性能，更關注客戶的實際需求，通過持續的技術創新和優質的服務，助力光伏產業邁向更高效、更環保的未來。

As the photovoltaic industry continues to grow rapidly, the manufacturing processes of photovoltaic modules are also constantly innovating and upgrading. Chintiyan(zbqt） Energy, as a pioneer in the research and development and intelligent manufacturing of photovoltaic module equipment, is always committed to providing efficient and intelligent solutions for the manufacturing of photovoltaic modules. Our equipment, equipped with advanced technology, can precisely control every manufacturing step, from stringing to lamination, from framing to curing, ensuring that each step meets the highest standards. Chintiyan(zbqt） Energy focuses not only on the performance of the equipment but also on the actual needs of our customers. Through continuous technological innovation and high-quality service, we are helping the photovoltaic industry move towards a more efficient and environmentally friendly future.
