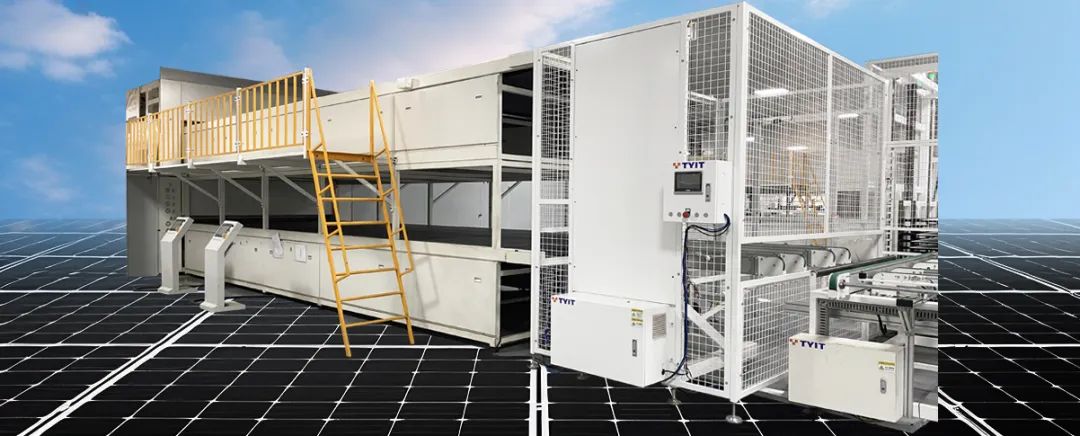

揭秘光伏制造的核心利器：層壓機

在光伏產業的浩瀚星空中，層壓機無疑是那顆璀璨的明星，它默默地在中游環節發揮著至關重要的作用。今天，中步擎天將帶您深入探索這一關鍵設備的奧秘，揭開其神秘的面紗。In the vast universe of the photovoltaic industry, the laminator is undoubtedly the shining star, playing a crucial role quietly in the midstream segment. Today, Chintiyan(zbqt） Energy will take you deep into the mysteries of this key equipment and unveil its enigmatic veil.

層壓機：光伏組件的“塑造者”Laminator: The "Shaper" of Photovoltaic Modules

層壓機，作為制造太陽能電池組件不可或缺的設備，對真空度、平整度、溫度均勻性都有著極高的要求。它如同一位技藝高超的工匠，精心雕琢著每一塊光伏組件，確保它們能夠高效、穩定地將太陽能轉化為電能。As an indispensable piece of equipment for manufacturing solar cell modules, the laminator has extremely high requirements for vacuum level, flatness, and temperature uniformity. It acts like a highly skilled craftsman, meticulously shaping each photovoltaic module to ensure that they can efficiently and stably convert solar energy into electrical energy.

加熱系統：熱量的精準傳遞Heating System: Precise Heat Transfer

走進層壓機的內部，首先映入眼簾的是其上下對稱的加熱板。這些加熱板不僅是熱量的主要產生部件，更是熱量傳遞的橋梁。它們采用高導熱性、高熱穩定性的材質，確保在層壓過程中，材料能夠均勻受熱，避免局部過熱或溫度不足導致的質量問題。Upon entering the interior of the laminator, the first thing that catches the eye is the symmetrical heating plates on the top and bottom. These heating plates are not only the main components for generating heat but also the bridge for heat transfer. Made of materials with high thermal conductivity and high thermal stability, they ensure that the materials are evenly heated during the lamination process, avoiding quality issues caused by local overheating or insufficient temperature.

加熱元件，如電阻絲、加熱棒等，則是加熱板的“心臟”。當電流通過這些元件時，電能被轉化為熱能，使加熱板迅速升溫。通過精確控制加熱元件的功率和分布方式，層壓機能夠?qū)崿F(xiàn)對溫度的精準調控，滿足不同材料、不同工藝的需求。Heating elements, such as resistance wires and heating rods, are the "heart" of the heating plates. When electric current passes through these elements, electrical energy is converted into thermal energy, causing the heating plates to quickly warm up. By precisely controlling the power and distribution of the heating elements, the laminator can achieve precise temperature control to meet the needs of different materials and processes.

壓力系統：力量的精準施加Pressure System: Precise Force Application

如果說加熱系統是層壓機的“熱源”，那么壓力系統則是其“動力源”。液壓系統以液壓油為介質，通過液壓泵將液壓油加壓后輸送到壓力缸；氣動系統則利用壓縮空氣作為動力源。兩者各有千秋，液壓系統能夠提供穩定、精確的大壓力，而氣動系統則以其結構簡單、成本較低而著稱。If the heating system is the "heat source" of the laminator, then the pressure system is its "power source." The hydraulic system uses hydraulic oil as the medium, and the hydraulic pump pressurizes the hydraulic oil and sends it to the pressure cylinder. The pneumatic system, on the other hand, uses compressed air as the power source. Each has its own advantages: the hydraulic system can provide stable and precise high pressure, while the pneumatic system is known for its simple structure and lower cost.

壓力缸和活塞的組合，如同層壓機的“肌肉”，它們將動力源提供的壓力轉化為對材料的擠壓力。通過精確控制活塞的運動速度和壓力大小，層壓機能夠確保材料在層壓過程中受到均勻、穩定的壓力作用，從而得到致密、均勻的層壓產品。The combination of the pressure cylinder and piston acts like the "muscles" of the laminator, converting the pressure provided by the power source into compressive force on the materials. By precisely controlling the speed of the piston and the magnitude of the pressure, the laminator ensures that the materials are subjected to uniform and stable pressure during the lamination process, resulting in dense and uniform laminated products.

控制系統：智能的“大腦”Control System: The Intelligent "Brain"

如果說加熱系統和壓力系統是層壓機的“四肢”，那么控制系統則是其“大腦”。溫度控制單元、壓力控制單元和時間控制單元共同構成了控制系統的核心。If the heating system and pressure system are the "limbs" of the laminator, then the control system is its "brain." The temperature control unit, pressure control unit, and time control unit together form the core of the control system.

溫度控制單元通過實時監測加熱板的溫度，并根據設定的溫度值進行精確調節，確保加熱板始終保持在**工作溫度范圍內。壓力控制單元則根據設定的壓力值和反饋的壓力信號，對動力源的輸出進行精確控制，實現壓力的精準施加。時間控制單元則負責設定和控制層壓過程的各個階段的時間，確保層壓過程按照預定的時間順序進行。The temperature control unit monitors the temperature of the heating plates in real-time and precisely adjusts it according to the set temperature value to ensure that the heating plates remain within the optimal working temperature range. The pressure control unit, based on the set pressure value and feedback pressure signal, precisely controls the output of the power source to achieve accurate pressure application. The time control unit is responsible for setting and controlling the time for each stage of the lamination process, ensuring that the lamination process proceeds in the predetermined sequence.

真空系統：創造完美環境Vacuum System: Creating the Perfect Environment

部分高端層壓機還配備了真空系統，這是其另一大亮點。真空泵通過抽取層壓機內部的空氣，使內部形成真空環境。這種環境有助于排除材料中的氣泡和揮發物，提高層壓產品的質量和性能。Some high-end laminators are also equipped with a vacuum system, which is another highlight. The vacuum pump evacuates the air inside the laminator to create a vacuum environment. This environment helps to remove bubbles and volatiles from the materials, thereby improving the quality and performance of the laminated products.

真空管道和閥門則構成了真空系統的“血管”和“開關”。它們確保真空泵能夠高效、穩定地工作，同時方便操作人員對真空環境進行精確控制。The vacuum pipes and valves constitute the "blood vessels" and "switches" of the vacuum system. They ensure that the vacuum pump operates efficiently and stably, while also facilitating precise control of the vacuum environment by the operators.

工作臺與模具：定制化的“舞臺”Worktable and Molds: The Customized "Stage"

最后，我們來看看層壓機的“舞臺”——工作臺和模具。工作臺是放置待層壓材料的平臺，其表面平整、光滑，確保材料放置的穩定性和均勻性。對于一些特殊形狀或有特定要求的層壓產品，模具則成為了不可或缺的輔助工具。它們能夠?qū)⒉牧蠅褐瞥商囟ǖ男螤?，滿足產品設計的需求。Finally, let's take a look at the "stage" of the laminator—the worktable and molds. The worktable is the platform where the materials to be laminated are placed. Its smooth and flat surface ensures the stability and uniformity of the material placement. For laminated products with special shapes or specific requirements, molds become an indispensable auxiliary tool. They can press the materials into specific shapes to meet the design requirements of the products.

中步擎天：光伏組件生產線的智慧之選Chintiyan(zbqt） Energy: The Intelligent Choice for Photovoltaic Module Production Lines

作為光伏組件生產線設備的研發與智造專家，中步擎天始終致力于為客戶提供高品質、高效率的層壓機產品。我們的層壓機不僅具備出色的加熱、壓力和真空性能，還配備了先進的控制系統和定制化的工作臺與模具，能夠滿足不同客戶、不同應用場景的需求。As a specialist in the research and intelligent manufacturing of photovoltaic module production line equipment, Chintiyan(zbqt） Energy is always committed to providing customers with high-quality and high-efficiency laminator products. Our laminators not only have excellent heating, pressure, and vacuum performance but are also equipped with advanced control systems and customized worktables and molds, capable of meeting the needs of different customers and various application scenarios.

選擇中步擎天的層壓機，就是選擇了光伏組件制造的高品質、高效率和高可靠性。讓我們攜手共進，共同推動光伏產業的繁榮發展！Choosing Chintiyan(zbqt） Energy's laminator means choosing high quality, high efficiency, and high reliability in photovoltaic module manufacturing. Let us join hands and work together to promote the prosperous development of the photovoltaic industry!
