探索光能奧秘：揭秘光伏IV測試儀的神奇力量

發表時間：2025-03-14 17:27

在這個追求綠色能源的時代，太陽能作為地球上最豐富的可再生能源之一，正引領著一場能源革命。在這場革命中，光伏電池作為光能轉化為電能的關鍵設備，其性能與效率至關重要。而評估這些“光能捕手”表現如何，離不開一個重要角色——光伏IV測試儀。今天，就讓我們一起揭開它的神秘面紗！

In this era of pursuit of green energy, solar energy, as one of the most abundant renewable energy sources on Earth, is leading an energy revolution. In this revolution, the performance and efficiency of photovoltaic cells, as the key equipment for converting light energy into electricity, are crucial. The evaluation of the performance of these "light catchers" cannot be separated from an important role - photovoltaic IV tester. Today, let us uncover its mystery together!

光伏電池：光能轉化的魔術師

“Photovoltaic Cells: Magicians of Light-to-Electricity Conversion”

光伏電池，或稱為PV電池，是直接將光轉化為電能的裝置。依據材料和結構的不同，光伏電池分為多種類型，如結晶硅太陽能電池、多晶硅太陽能電池、薄膜太陽能電池等。每種類型都有其獨特的特點和應用范圍。光伏IV測試儀的作用就是對這些電池的性能進行檢測和評估。

Photovoltaic cells, or PV cells, convert light directly into electricity. Depending on their materials and structures, PV cells come in various types, such as crystalline silicon solar cells, polycrystalline silicon solar cells, and thin-film solar cells. Each type has its unique characteristics and applications. The role of a Photovoltaic IV (Current-Voltage) Tester is to detect and evaluate the performance of these cells.

光伏IV測試儀：性能評估的精密儀器

“Photovoltaic IV Tester: Precision Instrument for Performance Evaluation”

光伏IV測試儀是太陽能研究和應用中的關鍵設備。它通過測量光伏電池的電流和電壓特性來評估其性能和效率。測試過程中，太陽能電池暴露在陽光下，光能被轉化為電能，測試儀同時測量電流和電壓，并根據這些數據計算出電池的功率、效率等參數。

The Photovoltaic IV Tester is a crucial device in solar energy research and applications. It evaluates the performance and efficiency of PV cells by measuring their current and voltage characteristics. During the testing process, the solar cells are exposed to sunlight, converting light energy into electrical energy. The tester simultaneously measures the current and voltage, and calculates parameters such as power and efficiency based on these data.

測試原理：電流與電壓的雙重考量

“Testing Principle: Dual Consideration of Current and Voltage”

光伏IV測試儀的測試原理主要分為兩個關鍵步驟：電流測量和電壓測量。

The testing principle of the Photovoltaic IV Tester mainly consists of two key steps: current measurement and voltage measurement.

- 電流測量：測試儀通過連接電池電路的方式測量電流。常用的方法是采用電流放大器和電流測量電阻來實現。電流放大器將電流信號放大后送入測量電阻，再通過測量電阻上的電壓來計算電流值。

- Current Measurement: The tester measures current by connecting to the battery circuit. A common method involves using a current amplifier and a current-sensing resistor. The amplifier boosts the current signal before it passes through the resistor, allowing the tester to calculate the current by measuring the voltage drop across the resistor.

- 電壓測量：測試儀通過連接電池的正負極來測量電壓。為了確保測量精度，測試儀通常會采用高阻放大器和模擬轉數器，將微弱電壓信號放大后進行測量。

- Voltage Measurement: The tester measures voltage by connecting to the positive and negative terminals of the battery. To ensure measurement accuracy, the tester typically employs a high-impedance amplifier and analog-to-digital converter to amplify the weak voltage signal before measurement.

光伏IV測試儀的廣泛應用

“Wide Applications of Photovoltaic IV Testers”

1. 研發和生產：在光伏電池的研發和生產過程中，IV測試儀用于評估電池的性能和效率，指導后續的改進和優化工作。同時，在電池生產過程中，測試儀還用于質量控制，確保電池質量符合標準。

1. R&D and Production: In the research and production of PV cells, IV testers are used to evaluate their performance and efficiency, guiding subsequent improvements and optimizations. Additionally, during the production process, testers are used for quality control to ensure that battery quality meets standards.

2. 電站建設和管理：在太陽能電站的建設和管理中，IV測試儀能夠及時發現電池組件的故障和性能衰退，確保電站的正常運行和高效發電。

2. Power Station Construction and Management: In the construction and management of solar power stations, IV testers can promptly detect faults and performance degradation in battery components, ensuring the normal operation and efficient power generation of the station.

3. 太陽能系統檢測和評估：通過對太陽能系統中各個組件進行IV測試，可以獲得各個組件的性能指標，并評估整個系統的性能和效率。

3. Solar System Inspection and Evaluation: By conducting IV tests on each component in a solar system, performance indicators of each component can be obtained, and the performance and efficiency of the entire system can be evaluated.

光伏IV測試儀的發展趨勢

“Trends in Photovoltaic IV Testers”

隨著太陽能行業的快速發展，光伏IV測試儀也在不斷創新和改進。未來，測試儀將更加注重測量的精度和效率，實現多功能和綜合測試，以及自動化和遠程監測。

With the rapid development of the solar energy industry, Photovoltaic IV Testers are constantly innovating and improving. In the future, testers will focus more on measurement accuracy and efficiency, enabling multifunctional and comprehensive testing, as well as automation and remote monitoring.

中步擎天：光伏組件設備智造的創新者

“Chintiyan(zbqt）Energy: Innovator in Photovoltaic Module Equipment Manufacturing”

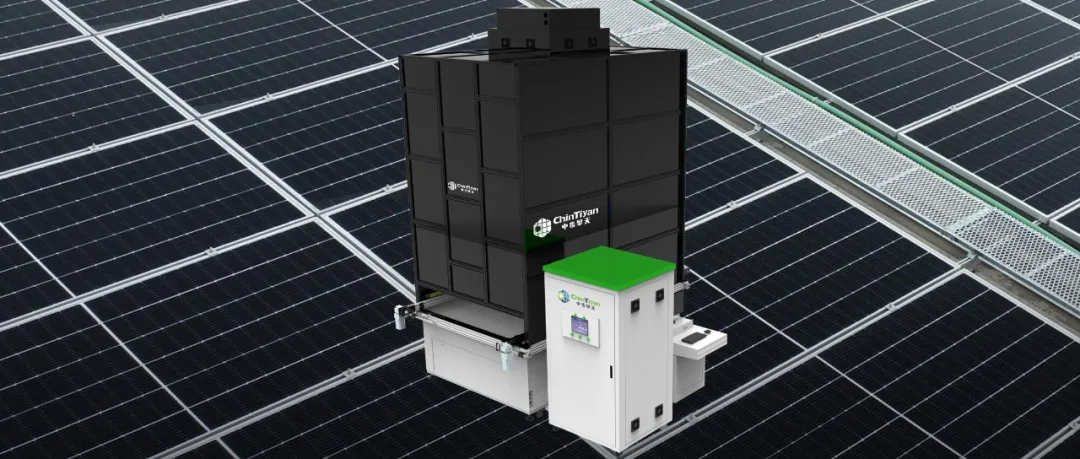

在光伏組件設備智造領域，中步擎天始終走在前列。我們致力于提供高性能、高精度的光伏IV測試儀，助力太陽能技術的研究和應用。隨著太陽能行業的不斷進步，中步擎天將繼續創新，為全球綠色能源事業貢獻力量。

In the field of photovoltaic module equipment manufacturing, Chintiyan(zbqt） Energy has always been at the forefront. We are committed to providing high-performance, high-precision Photovoltaic IV Testers to support research and applications in solar energy technology. With the continuous advancement of the solar energy industry, Chintiyan(zbqt） Energy will continue to innovate and contribute to the global green energy cause.
