光伏組件工藝流程簡述（建議收藏）

太陽能電池組件的質量和成本直接影響系統的質量和成本，那么，組件的生產工藝流程是什么樣的呢？

The quality and cost of solar cell modules directly affect the quality and cost of the system. So, what is the manufacturing process of modules?

1、組件結構

1. Module Structure

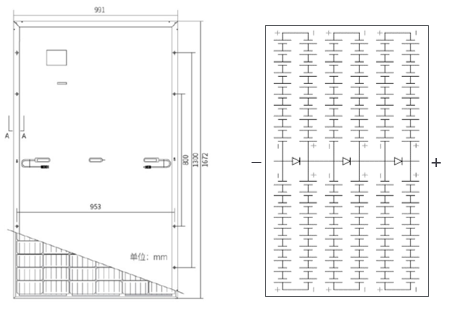

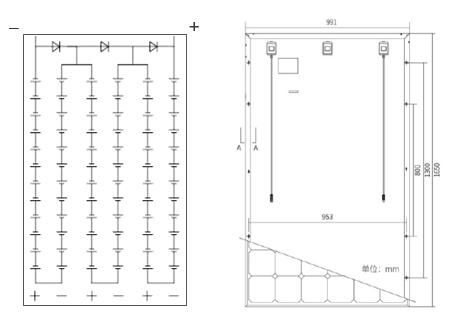

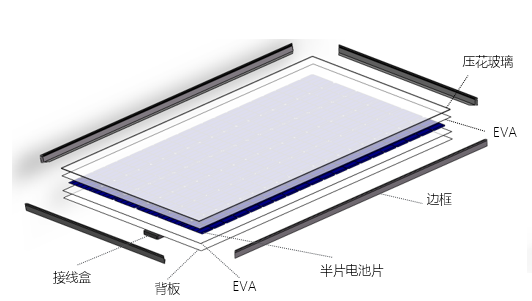

半片組件結構

Half-Cut Module Structure

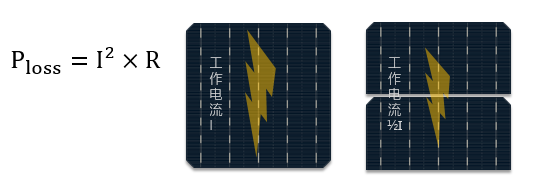

半片組件通過將電池片切半，使電池工作電流減半，明顯降低焊帶上的電學損失，提高組件CTM：

Half-cut modules are created by cutting solar cells in half, which reduces the working current of the cells by half. This significantly lowers electrical losses on the ribbons and improves the module's Current Transformation Matrix (CTM):

半片組件電池間空隙增大，照到背板經玻璃反射到電池的光略有增加；電池片電流越高，使用半片技術帶來的價值越大。

With half-cut modules, the gaps between cells increase, allowing slightly more light reflected from the glass to reach the cells. The higher the cell current, the greater the value brought by half-cut technology.

組件工藝流程

Module Manufacturing Process

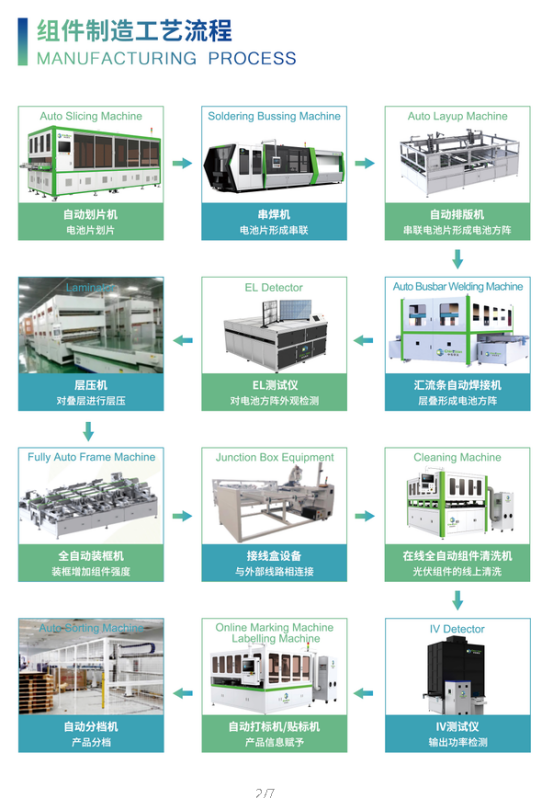

組件的生產工藝大體需經過：串焊——疊層——層壓——裝框——裝接線盒——固化——測試7個工藝環節，最終進行包裝，流入市場。區別于整片組件，半片組件電池切割過程在組件端實現，新增切片環節，配置激光切片機，隨后將串焊、層疊過程做調整；在電池端，半片技術僅需調整電池版圖。

The manufacturing process of modules generally involves seven major steps: stringing, layering, lamination, framing, junction box installation, curing, and testing. The final products are then packaged and released to the market. Unlike full-cell modules, half-cut modules have an additional cell-cutting process at the module end, which requires a laser cutting machine. Subsequently, adjustments are made to the stringing and layering processes. At the cell end, half-cut technology only requires adjustments to the cell layout.

2.1 串焊

2.1 Stringing

（人工與自動）用焊帶將各個電池片正反面焊接起來，組成串聯的電池串。

(Manual and Automatic) Cells are connected in series by welding the front and back sides of each cell with ribbons.

主要工藝控制：虛焊、過焊、裂片和焊接拉力。

Key process controls: virtual welding, over-welding, cell cracking, and welding tensile strength.

2.2 疊層

2.2 Layering

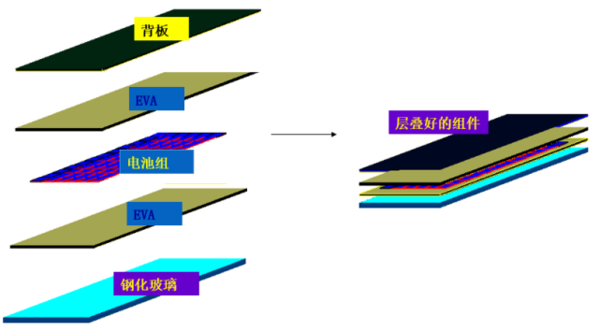

串接好且經過檢驗合格后，將組件串、玻璃和切割好的EVA、背板按照一定的層次敷設好，準備層壓。敷設時保證電池串與玻璃等材料的相對位置，調整好電池間的距離，為層壓打好基礎。（敷設層次：由下向上：玻璃、EVA、電池、EVA、玻璃纖維、背板）。

After the strings are connected and inspected, the module strings, glass, cut EVA, and backsheet are laid out in a specific order to prepare for lamination. Ensure the relative position between the strings and the glass, and adjust the distance between cells to lay a good foundation for lamination. (Laying order: from bottom to top: glass, EVA, cell, EVA, fiberglass, backsheet).

2.3 層壓

2.3 Lamination

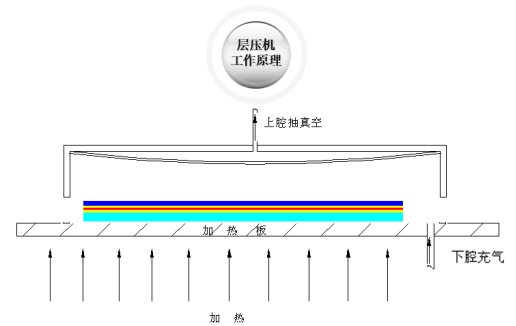

將敷設好的電池放入層壓機內，通過抽真空將組件內的空氣抽出，然后加熱使EVA熔化將電池、玻璃和背板粘接在一起；最后冷卻取出組件。層壓工藝是組件生產的關鍵一步，層壓溫度層壓時間根據EVA的性質決定。（我們使用普通的EVA時，層壓循環時間約為10~15分鐘。固化溫度為135~145℃。）

The laid-out cells are placed into the laminator. The air inside the module is evacuated, and then the EVA is melted by heating to bond the cells, glass, and backsheet together. The module is then cooled and removed. Lamination is a critical step in module production, with temperature and time determined by the properties of the EVA. (When using ordinary EVA, the lamination cycle time is about 10-15 minutes, and the curing temperature is 135-145°C.)

主要工藝控制：氣泡、劃傷、凹坑、鼓包和裂片

Key process controls: bubbles, scratches, dents, bulges, and cell cracking

值得注意的是，層壓前需要進行嚴格的外觀檢查和EL檢測，以確保組件性能和安全。

It is important to note that strict visual inspection and EL testing must be conducted before lamination to ensure module performance and safety.

2.4 裝框

2.4 Framing

保護組件鋼化玻璃的邊角及層壓后的組件，便于后期工程安裝。

Protect the edges and corners of the tempered glass and the laminated module, facilitating subsequent installation.

主要工藝控制：凹坑、擦傷、劃痕。安裝孔缺失，背面溢膠、氣泡和缺膠

Key process controls: dents, abrasions, scratches. Missing installation holes, overflow glue on the back, bubbles, and lack of glue.

2.5 安裝接線盒

2.5 Junction Box Installation

連接并保護太陽能光伏組件，同時將光伏組件產生的電流傳導出來供用戶使用。防止出現：氣泡和溢膠

Connect and protect the solar photovoltaic module while conducting the electricity generated by the module for user use. Prevent bubbles and overflow glue.

2.6 固化

2.6 Curing

前道裝框和裝接線盒時注入的密封膠固化，增強密封效果保護組件免受后續外界惡劣環境的影響。

The sealant injected during framing and junction box installation is cured to enhance the sealing effect and protect the module from subsequent harsh external environments.

主要工藝控制：固化時間、溫度和濕度

Key process controls: curing time, temperature, and humidity.

2.7 測試

2.7 Testing

測量電性能參數，確定組件的分檔。主要包含以下三種測試：

Measure the electrical performance parameters to determine the module's classification. The main tests include:

絕緣耐壓測試——測試邊框與內部帶電體（電池片、焊帶等）之間在高壓作用下的安全性；

Insulation voltage withstand test — Test the safety between the frame and internal live parts (cells, ribbons, etc.) under high voltage;

接地連續性測試——測試邊框與地之間的電阻，以確定邊框接地性能是否良好；

Ground continuity test — Test the resistance between the frame and the ground to determine if the frame grounding performance is good;

IV測試——測量電性能參數確定組件的檔次。

IV test — Measure the electrical performance parameters to determine the module's classification.
