Product Introduction
Stringer Machine
Suitable for pv production line in solar panel factories

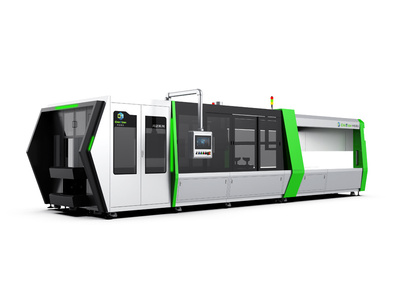

The CTM-60BC, a high-speed BC welder, is designed for automated production compatible with 166–230 (3BB-25BB) solar cell sizes. It welds 166-230 (half cells, 1/3 cells) BC solar cell strings. Equipped with PLC, servo, linear motors, four-axis industrial robots, and machine vision, it achieves fully automated processing from cell loading to string unloading.
Key Attributes
| Model | CTM-60BC |
| Product technical specifications |
| Uptime | ≥95% |
|
| CAP | >6000 half cells/h for 166-182BC cells |
|
| Breakage Rate | ≤0.25% | For Type A cells, thickness ≥120μm, the breakage rate increases for ultra-thin cells. |
| Inspection | CCD |
|
| Overall positioning accuracy | Position Deviation: ≤±0.1mm, Angle Deviation: ≤±0.04° |
|
| Fluxing Method | Solder Ribbon Dipping |
|
| Welding Method | Infrared Welding | Blue film facing downwards, fixture pressing the ribbon. |
| Temperature Control Precision | ±7.5℃ | The upper computer can set temperature upper and lower limits, and the device alarms when the temperature exceeds the limit. |
| Size | 166～230mm BC cells, and corresponding half cells, 1/3 cells |
|
| Number of Main Busbars | 3BB-20BB | Different busbar switching requires fixture replacement. |
| Cell Thickness | 120um～200um |
|
Packaging and delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
